High Temperature Potting Compound: The Ultimate Guide for High-Performance Applications

In industries where electronics and components are exposed to extreme conditions, the integrity and performance of materials are critical. High temperature potting compounds have emerged as essential tools to protect sensitive components from harsh environments, including excessive heat, moisture, vibration, and chemicals. These compounds provide robust insulation, thermal management, and mechanical protection, ensuring long-lasting performance in even the most demanding conditions. This blog post explores the world of high temperature potting compounds, their applications, benefits, and what factors to consider when selecting the right product for your needs.

What is a High Temperature Potting Compound?

A high temperature potting compound is a specialized encapsulating material designed to withstand extreme heat and protect electronic components and devices. These compounds are typically used in applications where temperatures exceed 150°C (302°F), and in some cases, they can resist temperatures as high as 250°C (482°F) or more.



Potting compounds are often made from epoxy, silicone, polyurethane, or ceramic-filled polymers. They encapsulate and insulate sensitive electronics, helping dissipate heat, reduce stress, and protect against physical, chemical, and thermal damage.

Critical Properties of High Temperature Potting Compounds

High temperature potting compounds possess various properties that make them ideal for use in extreme conditions. Some of the key characteristics include:

• Heat Resistance:These compounds’ primary feature is their ability to resist high temperatures without degrading or losing their protective properties.
• Thermal Conductivity:Many High temperature potting compounds enhance heat dissipation, ensuring electronic components do not overheat during operation.
• Electrical Insulation:These compounds provide excellent electrical insulation, preventing short circuits and protecting components from electrical failures.
• Chemical Resistance:They offer protection against chemicals, oils, solvents, and other harsh substances that can damage electronics.
• Vibration and Shock Resistance:High temperature potting compounds often have the mechanical strength to absorb shocks and vibrations, protecting sensitive components in automotive, aerospace, and industrial environments.
• Moisture Resistance:Some compounds are formulated to offer protection against humidity and moisture, ensuring the longevity of electronic assemblies in humid or wet environments.

Common Types of High Temperature Potting Compounds

Choosing the right type of high temperature potting compound depends on the application’s specific requirements. Each type offers unique properties that make it suitable for particular use cases.

Epoxy Potting Compounds

Epoxy is among the most popular High temperature potting materials due to its excellent adhesive properties, durability, and chemical resistance. Epoxy potting compounds typically offer high mechanical strength and are commonly used in automotive, aerospace, and industrial applications.



Key Features:

• Excellent mechanical strength
• Good thermal conductivity
• High chemical and moisture resistance
• Withstands temperatures up to 200°C (392°F) or more



Applications:

• Power Electronics
• Sensors
• Transformers
• Coils and motors

Silicone Potting Compounds

Silicone potting compounds are prized for their flexibility and ability to maintain performance across a wide temperature range, from extreme cold to very high heat. They are ideal for applications where components must expand and contract without cracking or losing protection.



Key Features:

• Wide temperature range (-65°C to 250°C)
• Superior flexibility and vibration resistance
• Excellent moisture and chemical resistance
• UV and weather-resistant



Applications:

• LED lighting systems
• Medical devices
• Aerospace components
• Automotive electronics

Polyurethane Potting Compounds

Polyurethane compounds balance flexibility and toughness, making them suitable for applications that experience moderate heat exposure but require high flexibility. While not as heat-resistant as epoxy or silicone, polyurethane potting compounds are highly resistant to abrasion and impact.



Key Features:

• Good flexibility and toughness
• High abrasion resistance
• Moisture and chemical protection
• It withstands temperatures up to 150°C (302°F)



Applications:

• Consumer electronics
• Cable joints
• Battery packs
• Low-power electrical systems

Ceramic-Filled Potting Compounds

Ceramic-filled potting compounds are designed for extreme thermal conditions. They combine the properties of ceramic materials with resin systems to provide exceptional heat resistance and thermal conductivity.

Key Features:

• Extremely high thermal conductivity
• Excellent heat dissipation
• Heat resistance up to 300°C (572°F) or more
• Ideal for heavy-duty, high-power applications

Applications:

• High-power electronics
• Thermal management systems
• Electric vehicle components
• Aerospace systems

Factors to Consider When Choosing a High Temperature Potting Compound

Selecting the suitable high temperature potting compound involves evaluating several critical factors. Understanding these factors will help ensure that the material chosen will provide optimal protection and performance for your specific application.

Operating Temperature Range

One of the most critical factors is your application’s maximum operating temperature. The potting compound should comfortably withstand the highest temperature the component will be exposed to, with some margin for safety.

Thermal Conductivity

For applications where heat dissipation is crucial, such as in power electronics or LED systems, selecting a potting compound with high thermal conductivity is essential to prevent overheating and extend the lifespan of the components.

Viscosity

The viscosity of the potting compound affects how easily it can flow into small spaces and encapsulate complex geometries. Low-viscosity compounds are ideal for intricate components, while higher viscosity materials may be better for applications requiring thicker protection layers.

Cure Time and Process

Some applications require fast-curing potting compounds, while others might benefit from materials that take longer to cure but provide higher strength or other desirable properties. Consider the manufacturing process and how the cure time will impact production efficiency.

Environmental Resistance

If your application involves exposure to chemicals, moisture, or UV light, ensure the chosen potting compound offers adequate resistance to these environmental factors to avoid degradation over time.

Application Methods for Potting Compounds

High temperature potting compounds can be applied using various methods, depending on the complexity of the assembly and the desired level of protection. The following are some standard application techniques:

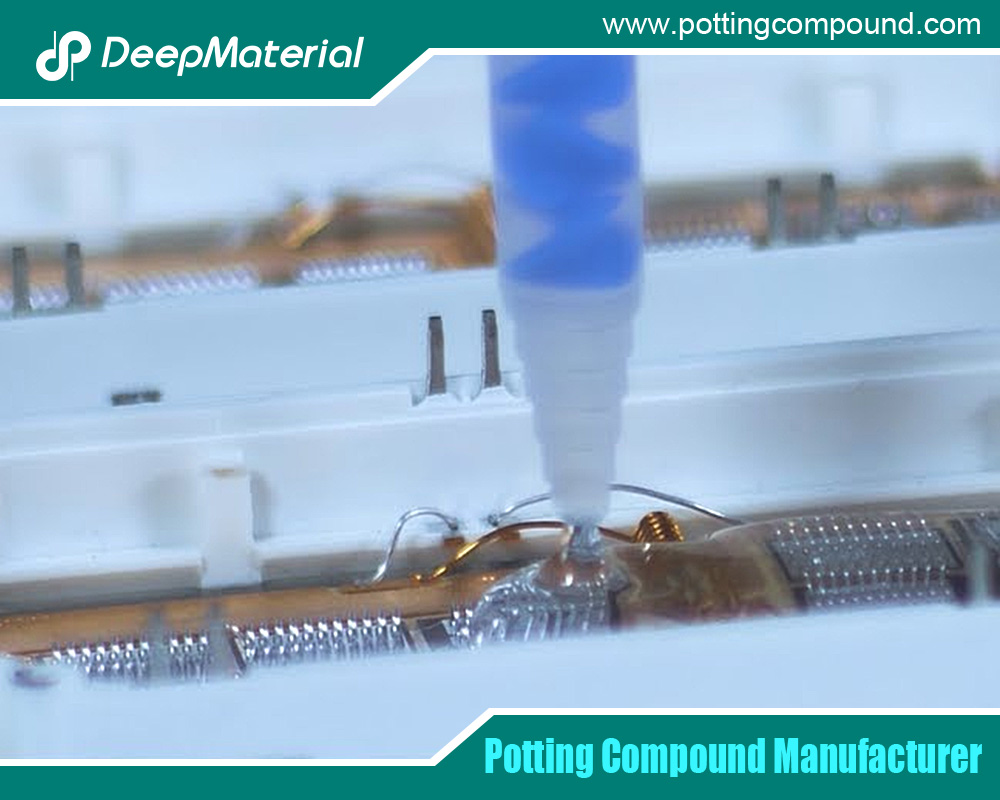

• Manual Dispensing:Ideal for small-scale applications or repairs, manual dispensing allows for the precise application of potting material to specific areas.
• Automated Dispensing:For larger-scale production, automated dispensing systems provide consistent, repeatable application, ensuring uniform coverage and faster production times.
• Vacuum Potting: In cases where air pockets or voids could compromise the integrity of the potting material, vacuum potting eliminates trapped air and ensures complete encapsulation.
• Encapsulation Molding:Sometimes, the potting compound is poured into a mold to create a custom protective enclosure for the component, providing maximum protection and insulation.

Critical Applications of High Temperature Potting Compounds

High temperature potting compounds are used across various industries, particularly in applications where components are exposed to extreme temperatures, harsh environments, or both. Some critical applications include:

• Automotive Industry:High temperature potting compounds are widely used in automotive electronics, including engine control units (ECUs), sensors, and electric vehicle battery systems.
• Aerospace and Defense:Aerospace applications often involve extreme temperature fluctuations, requiring robust potting materials to protect avionics, sensors, and power systems.
• Power Electronics:Inverters, transformers, and other power electronics that generate significant heat during operation rely on potting compounds for thermal management and insulation.
• LED Lighting:High-power LED systems generate heat, and potting compounds encapsulate the components, ensuring heat dissipation and environmental protection.
• Medical Devices:Potting compounds used in medical devices must provide excellent protection while being biocompatible. They are used in devices that require sterilization or are exposed to bodily fluids.

Advantages of High Temperature Potting Compounds

The benefits of using high temperature potting compounds in demanding applications are numerous. Some of the key advantages include:

• Extended Component Lifespan:Potting compounds help protect sensitive electronics from heat, chemicals, moisture, and mechanical stress, ultimately extending their operational life.
• Improved Reliability:Potting compounds reduce the likelihood of electrical failures, shorts, or damage due to environmental factors by encapsulating and insulating components.
• Enhanced Thermal Management:High temperature potting compounds with good thermal conductivity help dissipate heat, ensuring components remain calm and function efficiently.
• Customization:Potting compounds can be tailored to specific applications, offering flexibility in terms of viscosity, cure time, and temperature resistance.

Conclusion

High temperature potting compounds protect sensitive electronics and components exposed to extreme conditions. By providing thermal insulation, mechanical strength, and resistance to environmental factors, these materials ensure the longevity and performance of devices in automotive, aerospace, power electronics, and other industries.
